스크랩을 가치로, 당신이 할 수 있는 힘으로신뢰
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | WANSHIDA |
| 인증: | CE and ISO9001 |
| 모델 번호: | Y83-200 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 항해에 적합한 포장 |
| 배달 시간: | 45일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10 세트/월 |
| 모델: | Y83-200 | 압축력: | 200톤 |
|---|---|---|---|
| 챔버 크기: | 1500×850×700mm | 베일 크기: | (150-350)×850×350mm |
| 작동 압력: | 22MPa(최대 25MPa) | 사이클 시간: | 대략. 70초 |
| 냉각 시스템: | 공기 냉각기 | 유압 오일 용량: | ≥1200L |

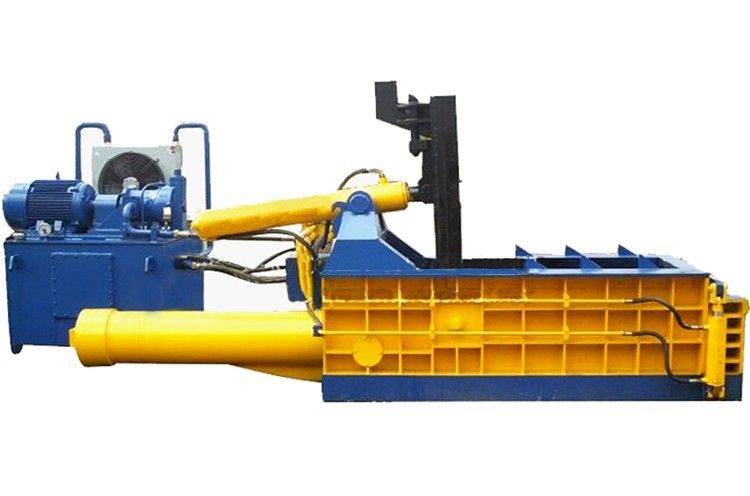

The Y83-200 Hydraulic Metal Baler is a high-performance Scrap Metal Baler Machine designed for recycling yards, metal processing plants, foundries, steel mills, and waste management facilities. Featuring a 200-ton compression force, a 1500×850×700mm compression chamber, and a front-out bale discharge system, this Hydraulic Metal Baler efficiently compresses loose scrap metal into dense and transportable bales.
It is widely used for processing ferrous and non-ferrous metals while helping businesses reduce transportation costs, improve storage efficiency, and increase scrap value.
Scrap processors often encounter challenges such as:
These issues directly affect operational profitability.
The Y83-200 Hydraulic Scrap Baler addresses these challenges by:
Its front-out bale discharge design ensures reliable operation and easy maintenance.
| Item | Specification |
|---|---|
| Model | Y83-200 |
| Compression Force | 2009kN (200 Ton) |
| Chamber Size | 1500×850×700mm |
| Bale Size | (150-350)×850×350mm |
| Working Pressure | 22MPa (Max. 25MPa) |
| Bale Discharge | Front-Out |
| Cycle Time | Approx. 70 Seconds |
| Cooling System | Air Cooler |
| Hydraulic Oil Capacity | ≥1200L |
| Motor Model | Y225S-4 |
| Motor Power | 37kW |
| Hydraulic Pump | 160YCY14-1B |
| Pump Displacement | 160ml/r |
| Rated Pressure | 31.5MPa |
| Machine Size | 5500×2000×2750mm |
| Total Power | 46.75kW |
| Weight | Approx. 10.5 Tons |
| Voltage | 380V / 3Ph / 50Hz |
| Control Type | Manual Valve Operation |
Suitable for:
Suitable Materials:
The main hydraulic cylinder compresses the scrap material inside the chamber. The lid cylinder and side cylinders assist in forming a dense bale. Once compression is completed, the front-out discharge system pushes the finished bale out for easy collection and transportation.
Consider the following factors:
The Y83-200 is ideal for medium-sized recycling facilities seeking a balance between investment cost and productivity.
Steel, iron, aluminum, copper, stainless steel scrap, and other recyclable metals.
Yes, customized automation options are available.
Yes, it is designed for long-term industrial use.
Yes, different voltage standards are available.
ISO9001 and CE certification options are available.
With over 40 years of manufacturing experience and exports to more than 80 countries, Wanshida provides reliable hydraulic recycling equipment solutions worldwide.
