스크랩을 가치로, 당신이 할 수 있는 힘으로신뢰
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | WANSHIDA |
| 인증: | CE and ISO9001 |
| 모델 번호: | Y83-4000 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 항해에 적합한 포장 |
| 배달 시간: | 45일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10 세트/월 |
| 이름: | 헤비 듀티 스크랩 자동차 포장기 | 모델: | Y83-4000 |
|---|---|---|---|
| 압축실 치수(L*W*H)(mm): | 2600*2000*1200 | 베일 치수(L*W*H)(mm): | (450-800)*550*650 |
| 베일 밀도(kg/m3): | >1800 | 용량(kg/h): | 5000-7000 |
| 단일 사이클 시간: | <160 | 전력(kW): | 110 |

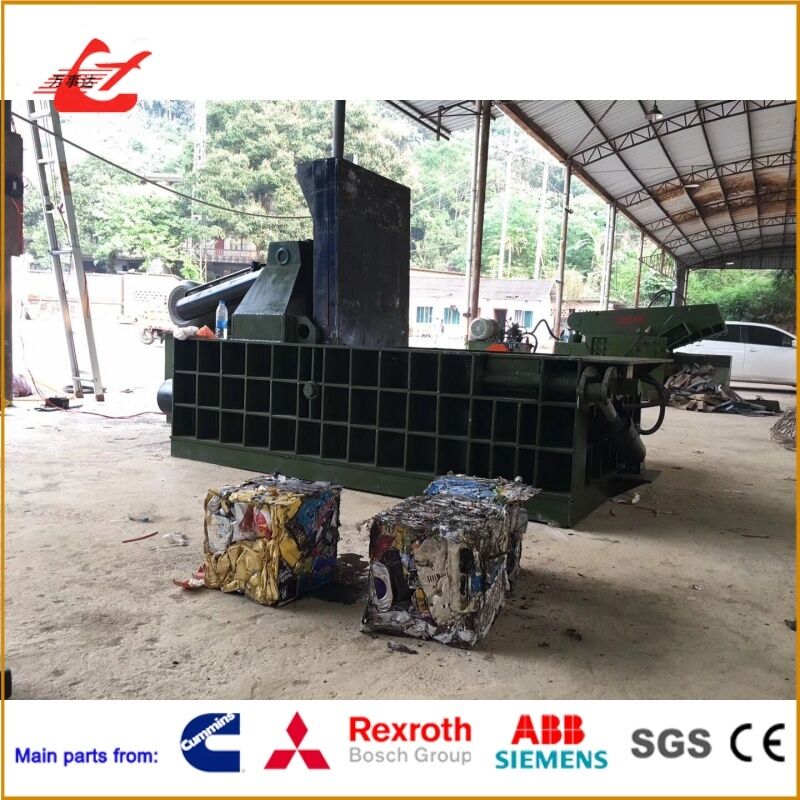

Y83-4000 Heavy Duty Scrap Car Baler with 4000kN Force
and 2600×2000×1200mm Chamber for Scrap Car Body and Large Metal Recycling
The Y83-4000 Heavy Duty Scrap Car Baler is a hydraulic metal baling machine designed for car dismantling plants, large scrap metal recycling yards, steel mill scrap yards, and renewable resource processing companies. It is mainly used to compress scrap car bodies, scrap steel, scrap iron, light metal waste, large metal offcuts, and other compressible scrap metal materials.
This model is equipped with 4000kN nominal force, a 2600×2000×1200mm compression chamber, and a bale size of 450–800×550×650mm. The bale density can reach more than 1800kg/m³. For customers handling scrap car shells, light scrap steel, and bulky metal waste, this scrap car baler can effectively reduce scrap volume, improve yard utilization, and lower loading and transportation costs.
The machine adopts push-out bale discharge and PLC semi-automatic control, which improves operating convenience and working stability. With 110kW power, it is suitable for higher-intensity scrap metal compression needs and can meet the efficiency requirements of medium and large recycling yards.
In the car dismantling and scrap metal recycling industry, scrap car bodies and large light scrap metal are usually bulky and irregular in shape. If stored loosely, they occupy large yard space and create serious management pressure.
Common customer problems include:
Scrap car bodies take up too much storage space
Loose scrap metal reduces truck loading efficiency and increases transport cost
Manual sorting and cutting are time-consuming and create safety risks
Irregular scrap shape makes stacking and sales more difficult
Small balers cannot handle large-size scrap effectively
Low scrap density affects furnace charging and transportation efficiency
For car dismantling plants and large recycling yards, compressing loose scrap into regular bales is an important step to improve operating efficiency.
The Y83-4000 heavy duty scrap car baler uses a powerful hydraulic system to compress bulky scrap car bodies, light scrap steel, and mixed scrap metal into high-density regular bales. After compression, the finished bales are easier to move by forklift, stack, weigh, load, transport, and send to the smelting process.
The large chamber design is suitable for handling larger scrap materials. The 4000kN force meets the compression needs of scrap car bodies and large light metal waste. PLC semi-automatic control makes the operation process clearer, while the push-out discharge system ensures stable bale output, making the machine suitable for long-term continuous production.
For customers who want to improve scrap car body processing efficiency, reduce manual cutting, and lower transportation costs, the Y83-4000 is a practical hydraulic scrap car baler solution.
| Item | Specification |
|---|---|
| Product Name | Y83-4000 Heavy Duty Scrap Car Baler |
| Machine Type | Heavy Duty Scrap Car Baler / Hydraulic Scrap Metal Baler |
| Nominal Force | 4000kN |
| Equivalent Force | 400 Ton |
| Compression Chamber Size | 2600×2000×1200mm |
| Bale Size | 450–800×550×650mm |
| Bale Section | 550×650mm |
| Bale Density | ＞1800kg/m³ |
| Capacity | 5000–7000kg/h |
| Single Cycle Time | ＜160s |
| Power | 110kW |
| Bale Discharge | Push-out |
| Operation Method | PLC Semi-Automatic Control |
| Quality Standard | ISO9001:2000 Standard |
The Y83-4000 scrap car baler is suitable for various large scrap metal compression and recycling applications.
It is suitable for car dismantling plants to compress scrap car bodies, car shells, and light metal scrap.
It can be used in large scrap metal recycling yards for scrap steel, scrap iron, and mixed metal waste.
It is suitable for steel mills and smelting plants as front-end scrap preparation equipment.
It can help renewable resource companies compress bulky metal offcuts and industrial waste.
It is suitable for scrap processing sites that need to reduce yard space and improve transportation efficiency.
This heavy duty metal baler is especially suitable for customers with large scrap size, high processing capacity, and higher requirements for bale density and machine stability.
During operation, scrap car bodies, light scrap steel, or other metal waste are loaded into the compression chamber. After the hydraulic system starts, the cylinders drive the pressing head to compress the scrap from different directions, forming a high-density bale. After the bale is formed, the push-out system discharges the finished bale for easy handling and stacking.
The whole process is cold pressing, without heating the material. PLC semi-automatic control helps operators complete compression, bale forming, and bale discharge more steadily. For large scrap processing sites, this machine can reduce manual sorting and cutting work and improve scrap metal handling efficiency.
When choosing a scrap car baler, buyers should focus on scrap type, chamber size, pressing force, bale size, site space, and daily processing capacity.
If the customer mainly processes scrap car bodies, large light scrap steel, mixed scrap metal, and metal offcuts, a 400 ton class heavy duty hydraulic baler is recommended.
If scrap materials are bulky, the compression chamber size should be carefully checked.
If transportation efficiency is important, bale density and bale size should match truck loading needs.
If the machine needs long-term continuous operation, hydraulic system, power configuration, and control method should be considered.
If the customer wants more stable operation, PLC semi-automatic control is more suitable than pure manual control.
WANSHIDA has more than 40 years of experience in hydraulic recycling machinery manufacturing. With our own factory and professional engineering team, we can provide customized solutions according to scrap type, bale requirements, local voltage, and site layout.
Yes. This machine is designed for scrap car bodies, large light scrap steel, and heavy scrap metal compression. It is suitable for car dismantling plants and large scrap recycling yards.
The bale size is 450–800×550×650mm. The actual bale length may vary depending on material type, feeding amount, and compression condition.
This model uses PLC semi-automatic control. It is stable and suitable for long-term use in medium and large recycling yards.
Yes. Voltage and frequency can be customized according to local requirements.
Yes. The machine adopts a heavy duty hydraulic structure and is suitable for continuous scrap processing in recycling yards and car dismantling plants.
We provide complete after-sales support for the Y83-4000 heavy duty scrap car baler, including installation guidance, operation training, maintenance suggestions, spare parts supply, and long-term technical service.
One year guarantee and lifelong maintenance support are provided.
Remote video installation guidance and operation training are available.
Regular spare parts such as hydraulic components, electrical components, and sealing parts can be supplied.
Machine maintenance suggestions can be provided according to the customer’s site conditions.
If any problem occurs, customers can contact us directly by phone, email, or online communication.
We provide not only scrap car baling machines, but also practical scrap metal recycling solutions based on real customer working conditions.
