JIANGSU WANSHIDA 유압 기계 CO., LTD
| 브랜드 이름: | WANSHIDA |
|---|---|
| 모델 번호: | Y83-2500 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 항해에 적합한 포장 |
| 배달 시간: | 35일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10 세트/월 |
| 이름: | 소각 브리케팅 프레스 | 모델: | Y83-2500 |
|---|---|---|---|
| 공칭 힘(KN): | 2500 | 브리켓 크기 ((mm): | Φ100×(50-80) |
| 베일 (KN)에 대한 압력: | 220 | 전력(KW): | 18.5 |
| 능력 (킬로그램 / Ｈ): | 800 (주철톱밥) | 작업: | 수동 또는 PLC 반자동 작동 |

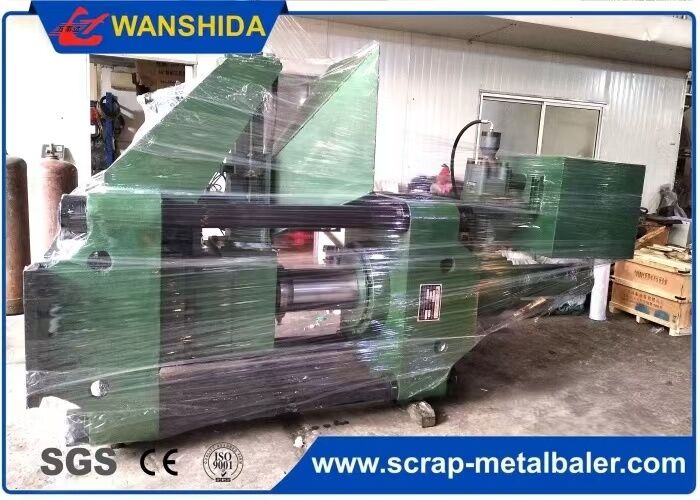

The scrap briquetting press (Y83-2500) is a compact and efficient solution designed for compressing loose metal chips such as cast iron, steel, aluminum, and brass into high-density cylindrical briquettes.
In many small and medium-sized machining workshops, loose metal chips are often difficult to store, transport, and reuse efficiently. The metal briquetting machine provides an ideal solution by converting scattered scrap into dense, uniform blocks.
With a 2500 kN pressing force, this machine delivers stable performance while maintaining low energy consumption (18.5 kW), making it especially suitable for small-scale recycling operations and CNC machining facilities.
| Item | Specification |
|---|---|
| Model | Y83-2500 |
| Nominal Force | 2500 kN |
| Briquette Size | Φ100 × (50–80) mm |
| Pressure on Bale | 220 kN |
| Power | 18.5 kW |
| Capacity | 800 kg/h (Cast Iron) |
| Operation | Manual / PLC Semi-Automatic |
| Drive | Hydraulic |
Ideal for workshops with limited installation space while maintaining strong performance.
Low power consumption (18.5 kW) reduces operating costs.

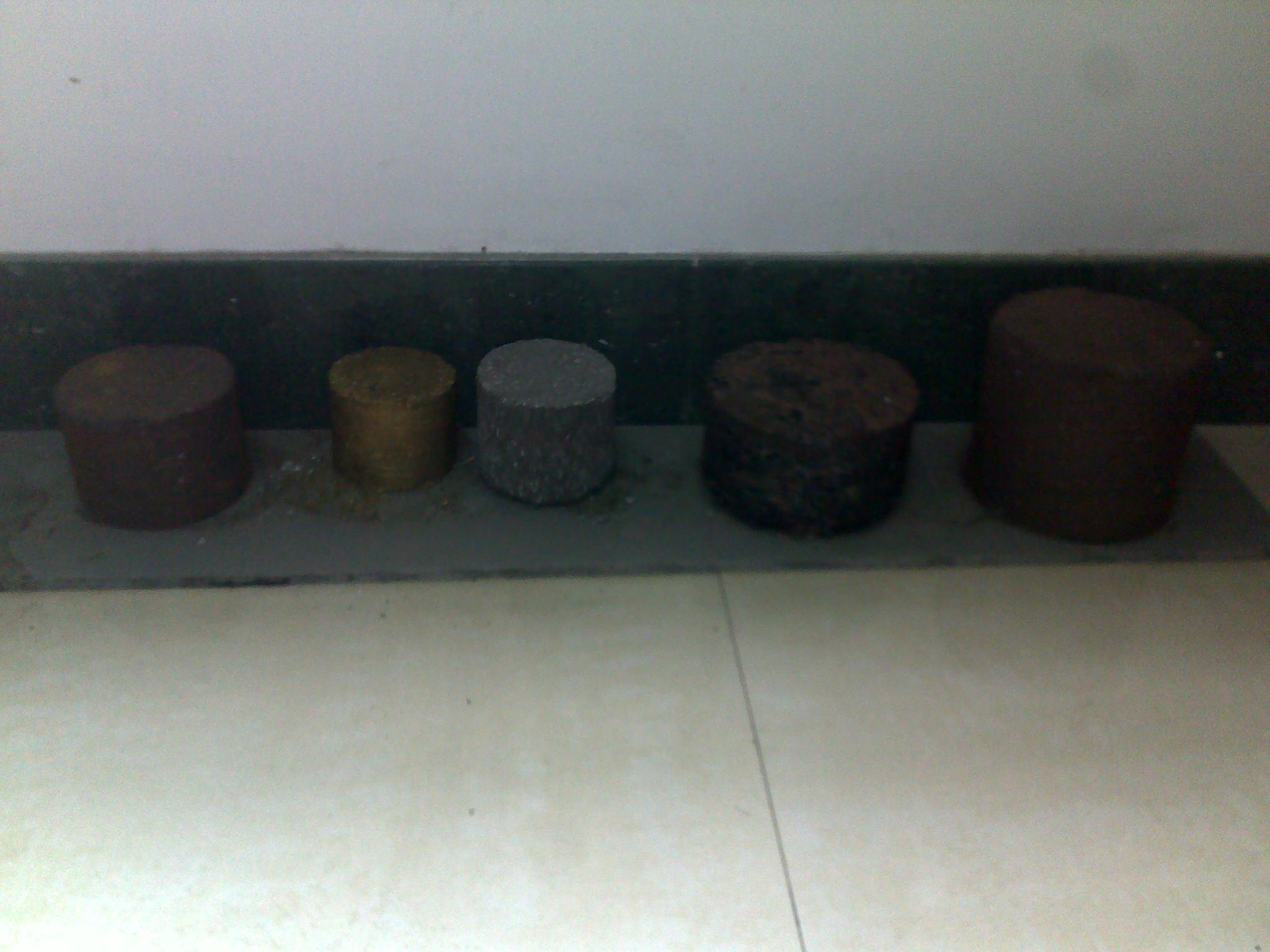

Compressed briquettes are easier to transport and can be directly used in furnaces.
Ensures smooth operation without vibration and long service life.
Supports both manual and PLC semi-automatic control.
Q1: What materials can be processed?
A: Suitable for cast iron, steel, aluminum, brass chips and other metal scraps.
Q2: Is this machine suitable for small workshops?
A: Yes, it is designed specifically for small to medium capacity users.
Q3: Can briquettes be used directly in furnaces?
A: Yes, high-density briquettes are suitable for direct furnace feeding.
Q4: Is customization available?
A: Yes, machine configurations can be customized based on your requirements.
