JIANGSU WANSHIDA 유압 기계 CO., LTD
| 원래 장소: | 중국 장쑤성 |
|---|---|
| 브랜드 이름: | Wanshida |
| 인증: | ISO9001,CE |
| 모델 번호: | Q43W-5000 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 바다에 적합한 |
| 배달 시간: | 30일 |
| 지불 조건: | 신용장, 전신환 |
| 공급 능력: | 한달에 30세트 |
| 가장 큰 전단력: | 5000kN | 블레이드 길이: | 1400mm |
|---|---|---|---|
| 절단 속도: | 2-3 분/분 | 힘: | 110kw |
| 작업: | 버튼 제어 | 수유 크기: | 3300*2400mm |
| 방전 크기: | 1400*400mm |

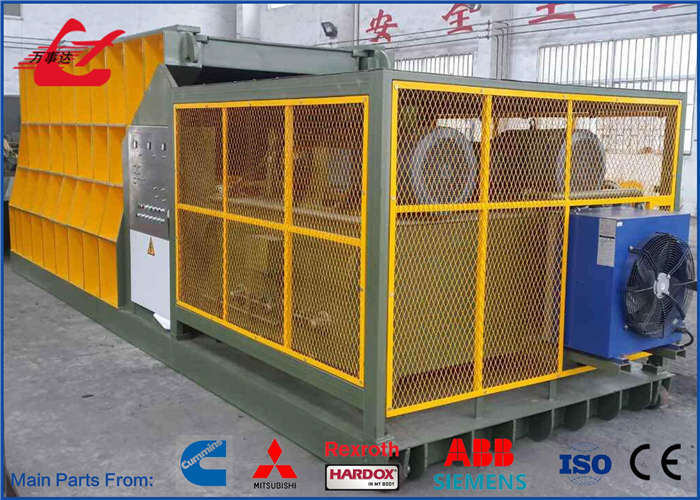

Q43W-5000 Hydraulic Horizontal Shear 5000kN For Heavy Steel Recycling And Steel Mills

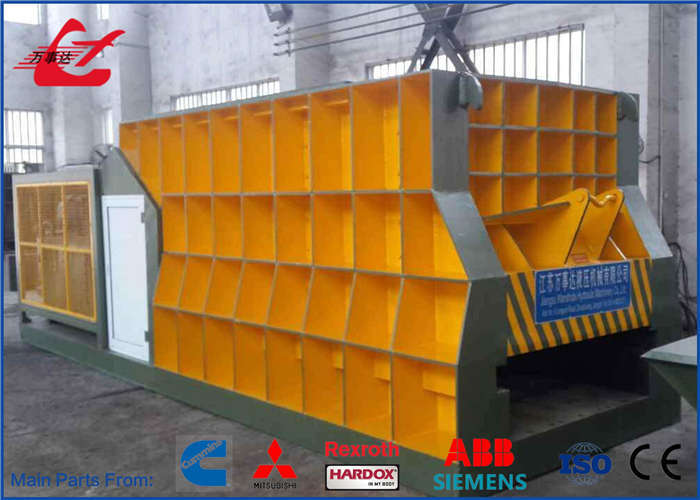

The Q43W-5000 box type hydraulic scrap metal shear is a heavy-duty horizontal shearing machine designed for efficient processing of large and mixed scrap metal materials. It is widely used in scrap yards, steel mills, and metal recycling facilities.
With a powerful 5000 kN cutting force, this machine is capable of cutting various metal profiles such as round steel, square steel, channel steel, angle steel, I-beams, steel plates, and other structural scrap metals in cold condition.
The box-type compression structure ensures that materials are firmly held during cutting, improving both safety and cutting efficiency. Combined with hydraulic and electrical control, the machine supports both single and continuous operation modes, making it ideal for medium to large-scale production requirements.
| No. | Model | Feeding Size (L×W) | Discharging Size (W×H) | Blade Length | Cutting Speed | Power |
|---|---|---|---|---|---|---|
| 1 | Q43W-5000 | 3300 × 2400 mm | 1400 × 400 mm | 1400 mm | 2–3 times/min | 110 kW |
The Q43W-5000 operates through a hydraulic system that drives both the compression cylinder and the shearing cylinder.
First, scrap metal is fed into the compression box. The compression cylinder presses and stabilizes the material. Then, the shearing cylinder activates the blade to cut the material into smaller pieces.
During operation, the machine can run in continuous mode, where operators only need to feed materials continuously according to the cutting speed. The system will automatically perform compression and shearing cycles, reducing manual labor and improving operational safety.
The Q43W-5000 is widely used in:
The Q43W-5000 is an ideal solution for customers who need a reliable and high-capacity scrap cutting machine. It offers a strong balance between cutting performance, operational efficiency, and long-term durability.
It is especially suitable for:
