JIANGSU WANSHIDA 유압 기계 CO., LTD
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | WANSHIDA |
| 인증: | CE and ISO9001 |
| 모델 번호: | Y83Q-6300C |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 항해에 적합한 포장 |
| 배달 시간: | 30일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 10 세트/월 |
| 이름: | 발레어 셰어 | 모델: | Y83Q-6300C |
|---|---|---|---|
| 실린더 추진 /전단력: | 630 톤 | 최대 작업 압력: | 20mpa |
| 용량: | 9-12 톤/h | 오픈 크기를 누르십시오: | 5000x1750x950mm |
| 베일 치수 (LXWXH): | (500-800) x600x (300-500) mm | 절단 속도: | 4-6회/분 |
| 강조하다: | 630T hydraulic baler shear,large hydraulic shear baler,steel plate hydraulic baler |
||

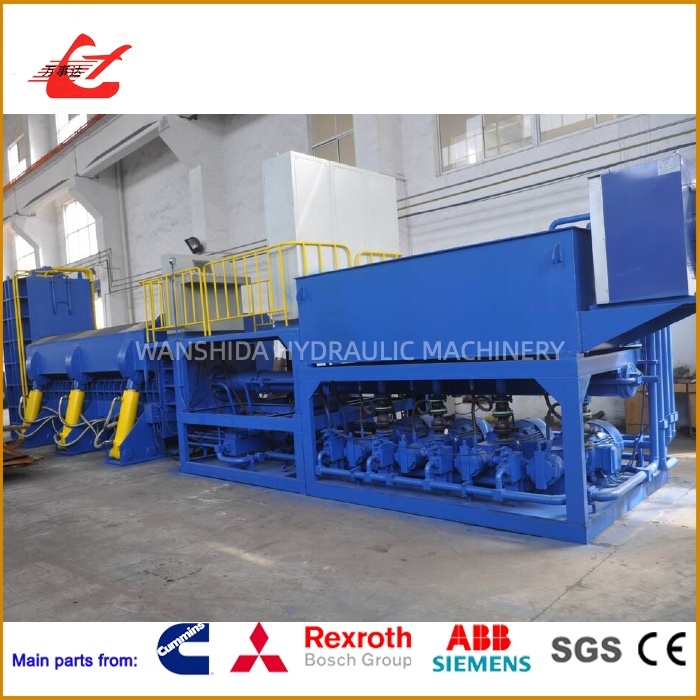

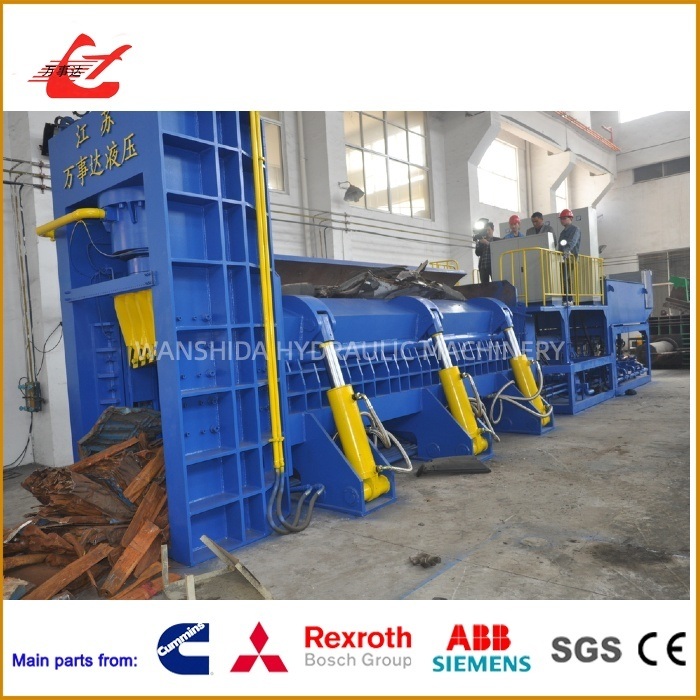

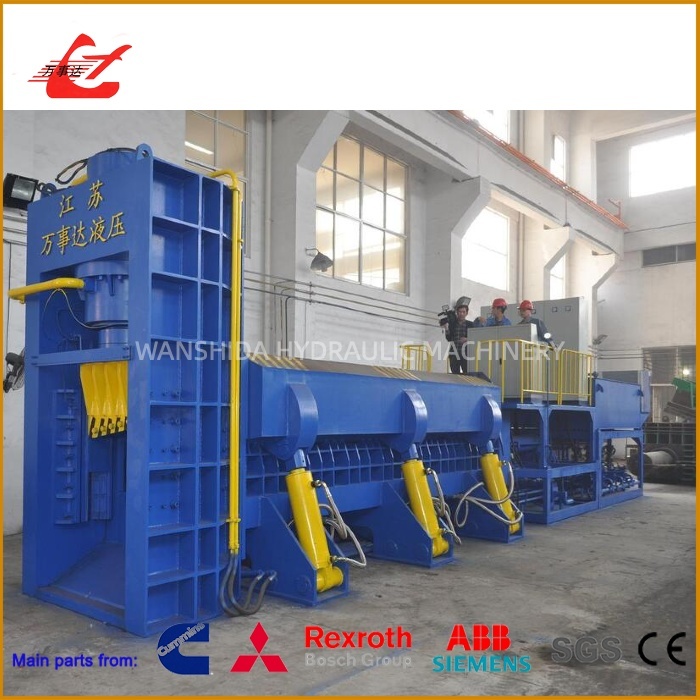

The Y83Q-6300C Scrap Metal Shear Baler combines baling and shearing functions in one powerful unit. Designed for steel mills, recycling centers, and metal processing plants, this machine delivers a shearing force of 630 tons, capable of cutting scrap up to 4mm thick with a production capacity of 9–12 tons per hour.
Equipped with a 220kW motor and an air cooling hydraulic oil system, it ensures stable performance during continuous operation. The large press room size (5000×1750×950mm) allows easy handling of bulky scrap metal for efficient compression and cutting.
Ideal for processing scrap steel, iron, rebar, round bars, channel steel, angle steel, and steel plates. It significantly reduces transportation volume and enhances metal recycling efficiency.
| Item | Specification |
|---|---|
| Model | Y83Q-6300C |
| Pushing/Shearing Force | 630 Ton |
| Max Working Pressure | 20 MPa |
| Capacity | 9–12 Tons/Hour |
| Press Room Size | 5000×1750×950 mm |
| Bale Size (L×W×H) | (500–800)×600×(300–500) mm |
| Max Scrap Thickness | 4 mm |
| Cutting Speed | 4–6 Times/Min |
| Hydraulic Oil Cooling | Air Cooling System |
| Motor Power | 220 kW |
| Machine Dimensions (L×W×H) | 12950×3510×4700 mm |
| Machine Weight | 57000 kg |
Scrap Size That Can Be Cut:
Square Steel: 100×100mm | Angle Iron: 180×180×15mm (3pcs) | Round Steel: Φ110mm | I-Beam: 320×132×11.5mm | Steel Plate: 30×450mm | Channel Steel: 320×90×10mm
Integrated Design: Combines baling and shearing for multi-purpose use.
Strong Power: 630-ton hydraulic force handles heavy and thick materials easily.
Energy Efficient: Optimized hydraulic system for faster and smoother cutting.
Smart Operation: Manual and PLC semi-automatic modes for flexible control.
Durable Structure: Heavy-duty frame with easy maintenance and long lifespan.
Q: What materials can this machine cut?
A: Suitable for cutting scrap steel, iron, steel plates, rebar, channels, and angle bars.
Q: Do you offer installation service?
A: Yes, we provide on-site or remote installation and training to ensure smooth operation.
We provide 1-year warranty and lifelong maintenance support. You can contact our service team directly by phone or online for any technical issues — we guarantee fast response and reliable support for your Metal Shear Baler.
