JIANGSU WANSHIDA 유압 기계 CO., LTD
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Wanshida Briquetting Press |
| 인증: | CE, ISO9001 |
| 모델 번호: | Y83-500 연동 프레스 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 항해 포장 |
| 배달 시간: | 35-50 일 |
| 지불 조건: | Western Union, Moneygram, D/P, T/T. |
| 공급 능력: | 고객 요구에 따라 다릅니다. 15 개/개월 |
| 공칭 힘: | 5000kn/500ton | 연탄 크기 (d x h): | Ø150*300mm 또는 Ø180*300mm |
|---|---|---|---|
| 생산 속도: | 1200-1500kg/h | 베일에 대한 압력: | 283MPA |
| 모터 파워: | 45kW | 보증: | 1 년 |
| 전원: | 전기 같은 | 제어 시스템: | plc |

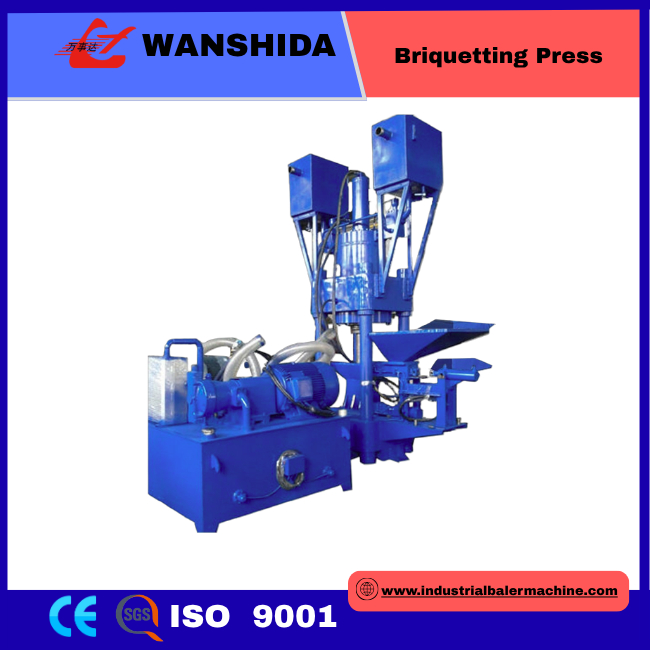

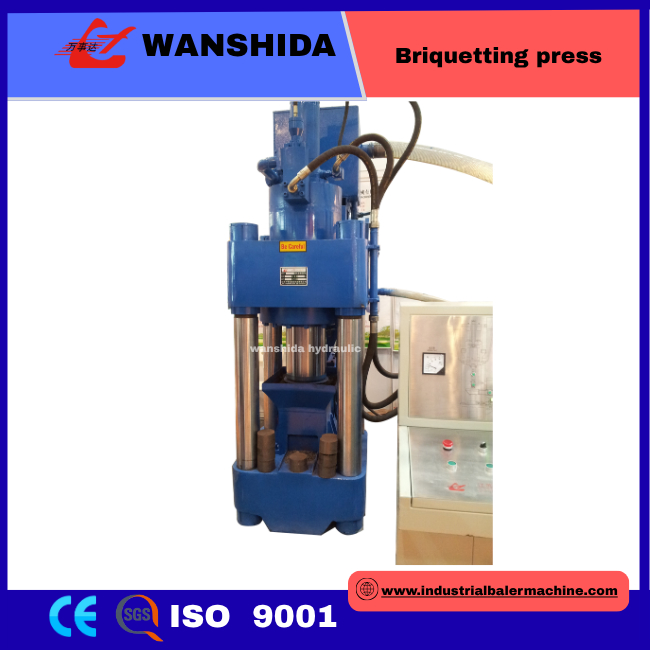

Hydraulic Metal Briquetting Press – High-Efficiency Scrap Recycling Machine
The Wanshida Y83-500 Hydraulic Briquetting Press is a powerful and energy-efficient metal recycling machine designed to compress loose metal scrap into dense, high-value briquettes. Engineered with a nominal force of 5000 kN (500 tons), it delivers exceptional compaction performance for processing iron, steel, aluminum, and copper scrap in foundries, steel mills, and recycling plants.
Outstanding Performance and Precision
Built for heavy-duty industrial use, the Y83-500 operates at a maximum hydraulic pressure of 283 MPa, forming high-density cylindrical briquettes in sizes of Φ150×300 mm or Φ180×300 mm. This powerful press achieves a production capacity of 1200–1500 kg/h, helping recyclers reduce material volume, minimize storage and transport costs, and improve furnace charging efficiency.
Advanced PLC Control System
The machine features an intelligent PLC control system that ensures fully automated operation with precise pressure monitoring and smooth cycle control. Operators can easily manage compression parameters and machine performance, making operation safe, consistent, and user-friendly.
Technical Specifications
| Parameter | Value |
| Model | Y83-500 Hydraulic Briquetting Press |
| Nominal Force | 5000 kN / 500 tons |
| Briquette Size | Φ150×300 mm or Φ180×300 mm |
| Production Capacity | 1200–1500 kg/h |
| Pressure on Block | 283 MPa |
| Motor Power | 45 kW |
| Power Source | Electric |
| Control System | PLC Automatic Control |
| Certification | CE, ISO9001 |
| Warranty | 1 Year |
| Origin | China |
Key Features
· 500-ton hydraulic force for strong and stable compaction.
· Adjustable briquette diameter for different scrap types and density requirements.
· High hydraulic pressure (283 MPa) ensures excellent briquette strength.
· PLC automatic control for efficient, safe, and precise operation.
· Durable structure with low maintenance and long service life.
· CE and ISO9001 certified for international quality compliance.
Advantages
· Reduces scrap volume by up to 90%, lowering transportation and storage costs.
· Produces uniform, high-density briquettes that enhance smelting and recycling efficiency.
· Environmentally friendly process with low energy consumption.
· Compact design suitable for small and medium-scale recycling facilities.
· Easy to install, operate, and maintain.
Applications
· Steel Mills: Preparing compressed scrap for melting.
· Foundries: Recycling steel and aluminum chips and turnings.
· Recycling Centers: Compacting ferrous and non-ferrous metal waste.
· Machining Workshops: Managing metal shavings and production leftovers.
After-Sales Service
· Warranty: One-year warranty for the entire machine.
· Support: Lifetime technical support and spare parts supply.
· Installation: On-site setup and operator training available.
Why Choose Wanshida?
With over 30 years of experience in hydraulic recycling machinery, Jiangsu Wanshida Hydraulic Machinery Co., Ltd. has established itself as a trusted manufacturer and global supplier of metal balers, shear balers, and briquetting presses. Exported to more than 80 countries, Wanshida machines are known for their reliability, innovation, and superior build quality.
